usb type c 3.1 H=4.3mm 16 Pin in usb type c adapter ,multi port usb charger with temperature resistant plastic
Product Details:
| Product name: | DALEE USB Type-C Connector |
| Secification: | 16 P |
| Type : | Type-C |
| Certification: | ISO9001,UL,ROHS and the latest REACH |
| Insertion Force: | 0.5~2.0kgf |
| Removal Force: | 0.8~2.0kgf |
| Durability: | 10000 cycles |
| Current Rating: | 3.0A |
| Voltage Rating: | 5.0 V |
| Current Rating: | 1.0A |
| Shield: | 50mΩ /MAX |
| Insulation Resistance: | 100mΩ/MIN |
| Operating Temprature: | -25℃ - +85 ℃ |
| Contacts: | Copper Alloy |
| Housing: | Thermoplastic , UL94 V-0 |
Material Specification:
1) Mid Plate: stainless steel
2) Housing: Hig Temperature resistant plastic,UL94 V-0.
3) Housing c0lor: Black
4) Solder area: Au : G/F
IR Reflow: The peak temperature on the board shall ,be maintained for 10 seconds at 260°C.

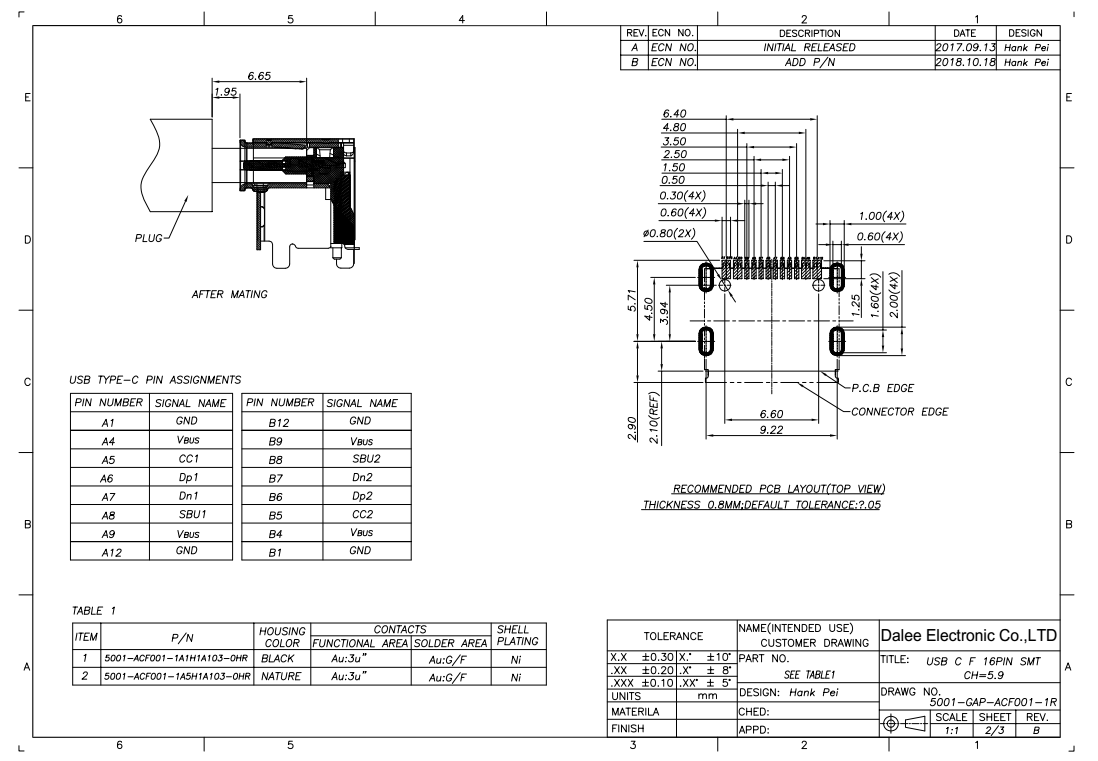

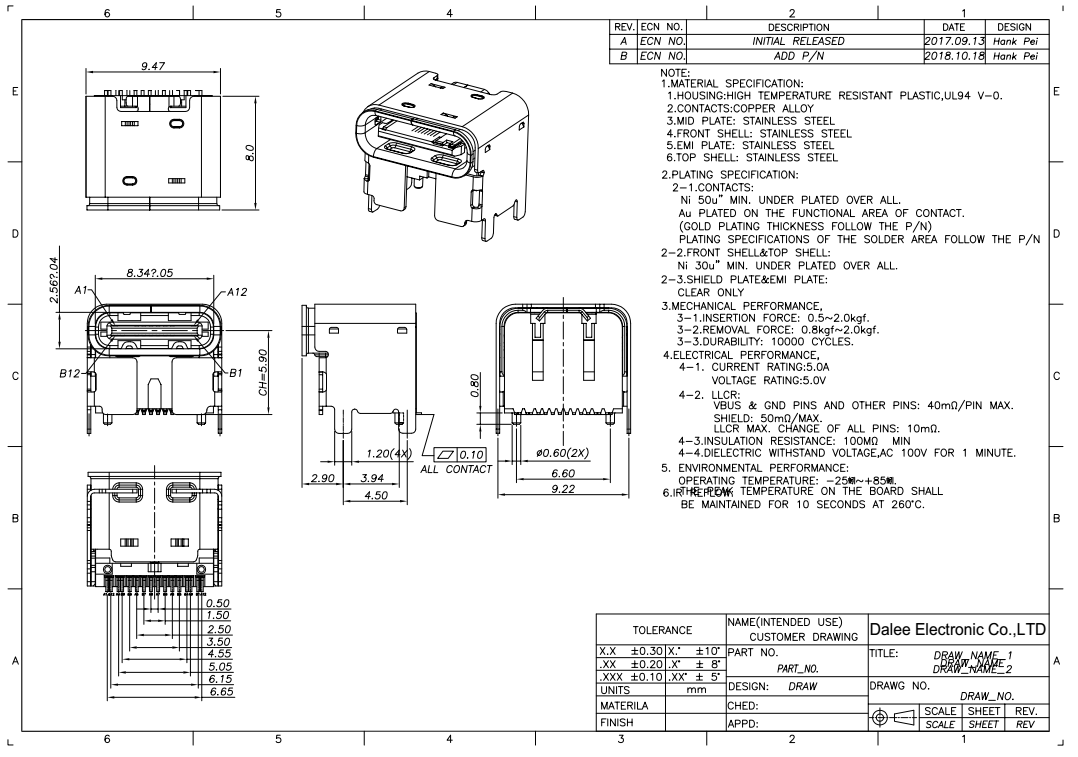

Drawing:
Product Application: Dalee connectors are widely applied to lots of industries, such as action camera manual mini sport DV, rear DVR video recorder , unmanned aerial vehicle, cummunications industry ,cusumer electronics,computer peripheral products , military industry ,automotive filed, medical equipment and so on .
Competitive Advantages:
1, More than 10 year's experience in the electronic business.
2, Quality certification ,including ROHS,SGS,ISO9001 and UL certification.
3, Strict shipping ,100% tested before delivery
4, samples can be provided for free in 1-3 days .
5, we also can provide the customized products as the request of clients
Payment term and delivery:
1. MPQ:1000pcs
2. Trade Terms: FOB Shenzhen or EXW.
3. Packing: Inside:PE bag,Tray, Tube,Box,Tape+Reel . Outside: export carton
4. Shipping method: UPS, DHL, FEDEX,EMS& Air transportation& Sea transportation..
5. Payment term: 100% T/T in advance before production.
6. Payment way: T/T, Paypal , Western Union or others method.
